EPI & Epicure Speakers:
The EPI 120 (B,C)

specifications - crossover schematic - order parts

Specifications

photo/top - crossover schematic - order parts

Dimensions: 25" x 15" x 12 1/2"
Weight: 47 lbs (120B: 42 lbs)
Response: 38 to 20k Hz
RMS Power: 25 to 80 watts (conservative rating)
Crossover: 1800 HzACC 004 A$35.00 each
10" woofer (1" voice coil)PRO 018 (Rebuild)$87.00 each
PRO 031 (New)$127.00
1" air spring dome tweeterPRO 002 ME1$73.00 each
Complete rebuild kitK-101E$432.00 / pair
Impedance:8 ohms
MSRP:298.00 - 350.00
Built:1978 - 81

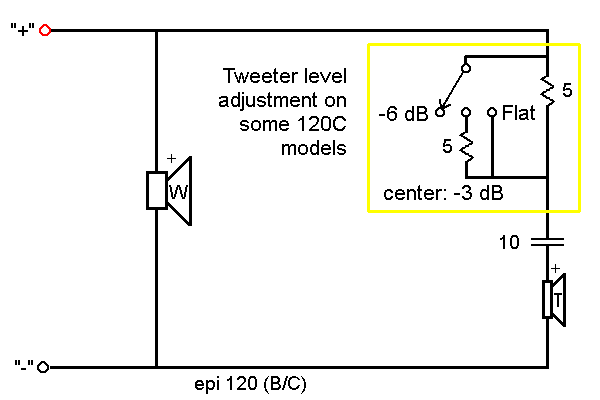

Crossover schematic

photo/top - specifications - order parts

Key to Crossover Symbols and Component Values (in a new window)

* * *
