EPI & Epicure Speakers:
The EPI A300
specifications - crossover schematic - order parts

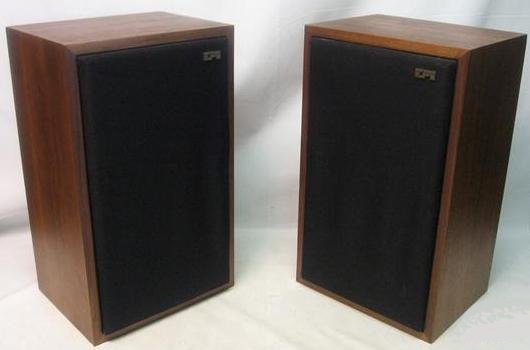

Photos from a kind auction seller:
Specifications
photo/top - crossover schematic - order parts
| Dimensions: | 22 1/2" x 13 1/2" x 10 3/4" | |
| Weight: | 37 lbs | |
| Response: | 40 to 20k Hz | |
| RMS Power: | 20 to 250 watts | |
| Crossover: 700 and 3000 Hz | ||
| 10" woofer (2" voice coil) | PRO 019 (Rebuild) | $93.00 each |
| PRO 031 (New) | $127.00 each | |
| 1" air spring dome tweeter | PRO 002 ME4 | $73.00 each |
| 4" midrange | PRO 025 | $40.00 each |
| Impedance: | 4 ohms | |
| MSRP: | 600.00 | |
| Built: | 1981 - 82 |

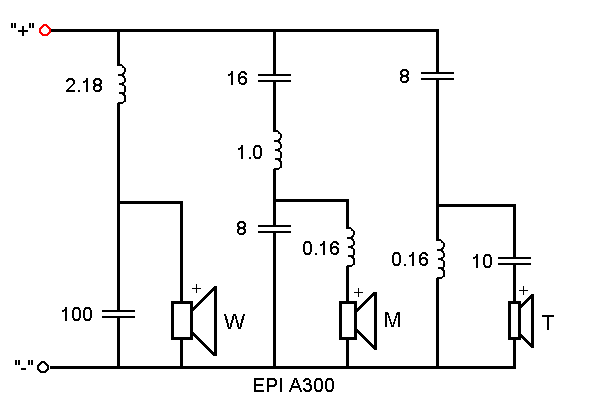

Crossover schematic
photo/top - specifications - order parts
Key to Crossover Symbols and Component Values (in a new window)
* * *
